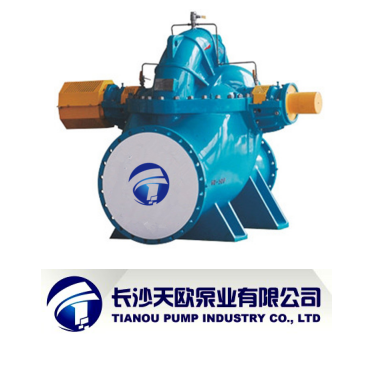

T/GS系列高效单级双吸中开泵



● 概 述

T/GS系列单级双吸中开离心泵是我厂引用国外先进的双吸泵技术,采用国外最优秀的水力模型,在原TS型单级双吸离心泵基础上开发的新产品;与原TS型泵相比,升级后的产品除秉承原产品平衡性好、振动小、安装维修方便外,还具有效率高、结构更紧凑、强度刚度高、抗汽蚀性能好、轴封可用机械密封或填料密封、通用范围广等优点。
TGS系列产品主要适用于自来水厂、空调循环用水、建筑供水、灌溉、排水泵站、电站、工业供水系统、消防系统、船舶工业、亦适合炼油工业中一般性用途;输送介质为清水或物理、化学性质类似于水的其它液体,介质温度不超过80℃,固体量不大于80mg/L。零件采用特殊材质,也可输送海水及含有悬浮物的雨水和工业废水。


结构特点

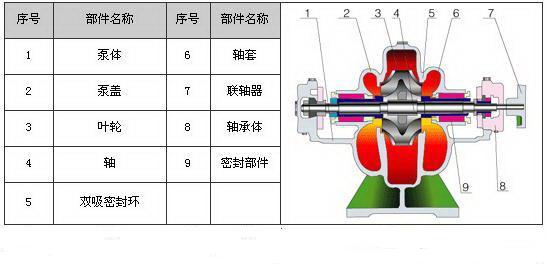

TGS型泵主要由泵体、泵盖、叶轮、轴系部件、联轴器部件、排气管部件、回水管部件等零部件组成,泵的进、出口均在水泵轴心线下方,与轴线垂直呈水平方向,泵壳为水平中开,检修时不需拆卸管路和电机。高扬程、大口径泵采用双蜗壳型式减少径向力,减少振动和噪声,轴承受力小寿命长,进口无漩涡,运转平稳损耗低。同一转子部件可用于反向,轴完全密封、不接触介质、不腐蚀螺纹、运行寿命长。
轴承:采用深沟球轴承支承,用油脂润滑。
轴封:填料密封或机械密封,填料水封水或机封冷却冲洗水由回水管部件从泵压出室引入或由外部接入。
传动:泵通过弹性联轴器由电机直接驱动,从电机端看泵为顺时针方向旋转,根据用户需要也可生产为逆时针方向旋转。
● 型号意义
例: T/GS 250-450A-(R)- J或(250T/GS450/R)
T/GS: 天欧高效双吸中开泵
250:水泵口径(mm)或生产代码
450:标准叶轮直径(mm)或生产代码
A:  泵叶轮外径的改变(最大直径时不表示)
R:  热水型(heating water)
J:   泵转数改变(保持原来转速时不表示)
● 结构特点
1. 水泵两端支承间距短,泵运行稳定,振动噪声小,并可适当升速运行,使水泵适应范围更广。
2. 进出水口在同一直线上,使管线布置简单方便、美观。
3. 同一转子可反向运行,降低了水锤引起水泵损坏的风险。
4. 独特的高温型设计,水泵采用中间支撑、加厚泵体、密封冷却、轴承稀油润滑等,使水泵可应用于高达200℃的运行场合,特别适用于供热管网使用要求。
5. 泵体部分可根据使用条件的变化采取立式或卧式安装,密封可采用机械密封或填料密封。
6. 水泵外型应用工业化设计,线条清晰,符合现代审美观。
7. 选(采)用优异的水力模型,使泵的效率比同类型泵高2-3%,大大降低了泵的运行成本。
8. 必需汽蚀余量降低1-3米,从而降低土建投资,延长了使用寿命。
9. 选用进口轴承,零件材料可根据用户应用要求选用,使泵能适应各种现场运行条件,大大降低了维修成本。
10. 无调整式机械密封,更换机械密封成为轻松简单的工作。
11. 应用弹性预应力设计装配, 转子部件装拆简单迅速。

12. 装配时无须调整各种间隙。

结构形式II






注:材料可根据用户要求选配。


注意事项

①泵安装之前,确认基础地板调平,设备水平度良好后再进行灌浆。泵和电机联轴器必须调整对准同心度,纠正长途运输颠簸造成的轻微错位。如果是挠性联轴器,并不能补偿任何明显的失调,失调可能引起快速的磨损,噪音,振动和设备的损坏。

② 设备安装以后,要连接吸入和排出管道,请勿用泵作为管道支架,所有管道均不能用泵做支撑,安装附件时,注意管道应多用直管少用弯管,以减少水头损失。在使用弯管时,泵进出口前后的直管部分应至少为管径直径的5~10倍长。吸入管必须保持一定的直度,不能过长,吸入管口要安装底阀。使用的吸入管径最好至少应比泵吸入口大一个等级而不能比泵吸入口小。吸入管道的安装应逐渐上升,请勿把卧式管道的任何部分装的高于泵吸入口。

③ 泵吸入管终端必须比最低液面低1m,

④ 出口管道上装闸阀和止回阀,止回阀能阻止停机时回流对泵的损害(泵厂对因未装止回阀造成的损坏不负责任)

⑤填料压盖不要拧得太紧,少量的泄漏可以使填料得到润滑,如停止泄漏将会引起填料烧损或轴套擦伤。

⑥启动泵时,请点试转向,确保电机接线正确。然后请逐渐慢慢打开出口阀,在任何时候请勿长时间关阀运行。

⑦ 启动泵之前,必须先灌满引水。

⑧请勿尝试在运行设备附近进行保养,检修或清理。以免造成安全事故。


长沙天鹅天欧工业泵品牌服务承诺:

    产品在质量保证期内,对有缺陷的产品负责包修、包换、包退;所有质量问题投诉,24小时内作出答复。外派服务人员,做到故障不排除或未作出结论意见,不撤离现场。我厂所出厂的配件均为原装尺寸配件。我厂现生产的产品及配件与原有型号通用、通配,如出现安装尺寸及质量问题我们将无条件退换货,所有设备服务终身!(整机保修一年,易损件保修六个月)。

全国各区域售后部联系方式

售后总部

湖南长沙    400-1801-181

(其他各区域售后联系方式,敬请来电索取)

GS Series High Efficiency Single Stage Double Suction Centrifugal Pump

General

Type GS single stage double suction centrifugal pump have high efficiency and energy saving character. With wide Performance range, superior hydraulic performance and reasonable structure, the series of pumps have high efficiency and reliability, low cavitations and cost for maintenance.


Application

GS series products are mainly used for deliver fresh water or other liquids similar to fresh water, the solid content is not more than 80mg/L, it also can deliver sewage, sea water and muddy water with little particle with adopting of anti-corrosion and anti-friction material. The products are widely applicable to supply & drainage system or cooling & circulating system for iron & steel, petrochemical, thermo power plant and mines industries, etc. and running water system for cities, circulating water for heating system, irrigation projects and various water conservation projects, fire systems, shipbuilding industry as well.


Performance range

◆  Capacity135~38000 m3/h

◆  Head12~205 m

◆  Temperature≤80cooling structure will be adopted for bearing, the material of casing & cover is QT500-7≤150

◆  Speed370~2970 r/min

◆  Suction diameter150~1800 mm

Show details


Comprehensive Performance Curve

Comprehensive Performance CurveComprehensive Performance Curve



1.Sealing

High quality mechanical seals, operating with no leakage for long time running.

Common structure has good interchangeability, which is suitable for mechanical seal, non-asbestos packing and injected soft packing as well.

Stainless steel shaft sleeve is convenient for maintenance.

Split packing cover has enough space for packing replacement.



2.Protective cover

Split structure is safety and reliable that conforms to IE standard.



3.Casing

Round water chamber design, with high efficiency.

Double volute water chamber is to balance radial force, with advantages of good strength, low force for bearing and sealing, long operation period.

Suction chamber is designed with guiding rib, with advantages of no whirl in suction, stable operating, noiseless and good cavitations performance.

Anti - friction and anti-corrosion painting is adopted for suction & discharge flow channel that have low hydraulic loss.

The pump cover is auto correct that convenient for installing.

The casing shell is designed with reinforcing rib that has good rigidity and appearance.



4.Bearing

Short span and enlarged diameter design are adopted that have stable operation and long operation period.

Grease lubricating is adopted for medium & small pump that infuse oil online.

Online vibration & temperature monitoring devices are provided to ensure safety operation.

Water cooling structure is suitable for high temperature liquids delivering.



5.Shaft

It is designed thicker that has good rigidity and stable operation.

Complete sealing design is adopted without connecting with liquids that convenient for maintenance.

Short time reverse rotation is allowable, and the shaft can be used for both rotations.



6.Impeller

It is designed with three-dimensional flow theory and CFD calculation & simulation that have advantages of high efficiency, wide high efficiency rang and good cavitations performance.

Equipped with remodeled impeller that has wide Performance range.

Adjacent vanes are interlaced design and V-type discharge that have advantages of good flowing, low pulsation, low vibration and high efficiency.

The seal ring is stepped designed that have low volume loss.

Metal mould, digital machining, and accurate roughcast are adopted.
